Electromagnetic Field Flow

Practical Demonstrations

Electromagnetism is often introduced through equations—fields, forces, and potentials defined in continuous space. But beneath this formalism lies a deeper structure: a dynamic system of state propagation governed by constraints. In this chapter, we shift from static description to executable process, recasting electromagnetic behaviour as a Flow Algebra system—a structured evolution of state through rules, boundaries, and invariants.

Here, the electromagnetic field is no longer treated as an abstract entity spread across space, but as a coherent flow of state transitions. Charges, currents, and fields become elements within a system:

\[ S = (I, R, B, K) \]

where internal information II encodes field values and sources, rules RR define how fields evolve, boundaries BB constrain valid interactions, and invariants KK enforce conservation laws such as charge and energy consistency.

From Field Equations to Executable Flow

Traditional formulations like Maxwell’s equations describe what must be true of electromagnetic fields. Flow Algebra instead defines how the system evolves step by step:

\[ S_{t+1} = R(S_t) \]

This reframing turns electromagnetism into a computable process—a sequence of valid state transitions where each step preserves structural coherence. The field is not solved globally; it is propagated locally, with each update constrained by invariants such as divergence conditions and causal consistency.

In this view:

  • Electric fields emerge from state gradients
  • Magnetic fields emerge from propagating transformations
  • Induction becomes state coupling across time
  • Radiation becomes self-propagating coherence through space

Why Practical Demonstrations Matter

Electromagnetism is one of the most experimentally grounded domains in physics. Any new formulation must not only reproduce known results—it must do so operationally. This chapter therefore focuses on practical demonstrations, showing how Flow Algebra can:

  • Reproduce classical behaviours (field propagation, induction, wave motion
  • Model systems step-by-step without requiring closed-form solutions
  • Execute directly within an LLM or reasoning system, without compilation
  • Maintain physical invariants throughout evolution

Rather than presenting abstract theory alone, we demonstrate working flows—self-contained specifications that simulate electromagnetic behaviour in real time.

Electromagnetism as a Constraint-Preserving System

At every step of evolution, only states that satisfy physical constraints are permitted:

\[ O = R(I) \mid B, K \]

This ensures that:

  • Charge is conserved
  • Field continuity is maintained
  • No non-physical states are produced
  • Causality is preserved across propagation

If no valid next state exists, the system halts—mirroring physical impossibility.

From Observation to Execution

What makes this approach powerful is not just that it describes electromagnetism—but that it runs it.

A Flow Algebra specification for an electromagnetic system is:

  • Self-contained — no external solver required
  • Deterministic under constraints — behaviour emerges from structure, not tuning
  • Model-agnostic — executable across reasoning systems
  • Inspectable — every transition is explicit and traceable

This allows us to move beyond simulation as approximation, toward simulation as structured reasoning.

What This Chapter Builds Toward

In the sections that follow, we will construct and execute concrete electromagnetic flows, including:

  • Field propagation from moving charges
  • Induction as time-linked state transformation
  • Wave emergence as recursive field coupling
  • Energy flow as invariant-preserving transition

Each example will be expressed as a Flow Algebra specification, accompanied by:

  • Step-by-step state evolution
  • Constraint validation at each transition
  • Direct mapping to physical interpretation

A Shift in Perspective

This chapter marks a transition from describing physics to executing it as structure.

Electromagnetism is no longer a set of equations to be solved—it is a coherent system to be run.

And in doing so, we reveal something deeper:

The electromagnetic field is not just a phenomenon—it is a flow of constrained possibility, unfolding step by step within a boundary of coherence

ElectromagneticFieldFlow_PracticalDemonstrationsv1.0

flow "ElectromagneticFieldFlow_PracticalDemonstrations" v1.0

# ==========================================================
# PURPOSE
# Model electromagnetic field evolution as a constraint-
# preserving state transition system. Demonstrates how
# electric and magnetic fields propagate, interact, and
# conserve physical invariants through discrete flow steps.
# ==========================================================

# ---------- SYSTEM ----------
system:
  S: (I, R, B, K)

# ---------- IO ----------
io:
  input:
    - charge_distribution      # spatial charge density ρ(x,t)
    - current_distribution     # current density J(x,t)
    - initial_E_field          # electric field E(x,0)
    - initial_B_field          # magnetic field B(x,0)
    - time_step                # Δt
    - spatial_grid             # discretised domain

  output:
    - E_field_t                # E(x,t)
    - B_field_t                # B(x,t)
    - energy_density           # u(x,t)
    - valid_state              # boolean

# ---------- STATE ----------
state:
  It:
    E_field: E(x,t)
    B_field: B(x,t)
    charge_density: ρ(x,t)
    current_density: J(x,t)
    energy_density: u(x,t)
    time: t

# ---------- PARAMETERS ----------
params:
  epsilon_0: permittivity_constant
  mu_0: permeability_constant
  c: speed_of_light

# ---------- INVARIANTS ----------
invariants K:

  - charge_conservation:
      ∂ρ/∂t + ∇·J = 0

  - gauss_electric:
      ∇·E = ρ / epsilon_0

  - gauss_magnetic:
      ∇·B = 0

  - energy_non_negative:
      u >= 0

  - finite_propagation:
      propagation_speed <= c

# ---------- BOUNDARY ----------
boundary B:

  - physical_domain_limits:
      fields defined only within spatial_grid

  - continuity:
      field_values are continuous across neighbours

  - causality:
      updates depend only on local or prior state

# ---------- RULES ----------
rules R:

  # --- Electric field update (Maxwell–Ampère) ---
  - update_E:
      E_next = E + Δt * ( (1/epsilon_0) * (∇ × B - J) )

  # --- Magnetic field update (Faraday induction) ---
  - update_B:
      B_next = B - Δt * ( ∇ × E )

  # --- Charge evolution ---
  - update_charge:
      ρ_next = ρ - Δt * ( ∇ · J )

  # --- Energy density ---
  - update_energy:
      u = (epsilon_0 / 2) * |E|^2 + (1 / (2 * mu_0)) * |B|^2

# ---------- TRANSFORM ----------
transform:

  Et = expand(It, R)

  Vt = {
    x ∈ Et |
    x satisfies B AND K
  }

  if Vt ≠ ∅:
    x* = select_consistent_state(Vt)
    It+1 = x*
  else:
    It+1 = FAIL

# ---------- STATE PROPAGATION ----------
propagation:
  St+1 = R(St)

# ---------- MONITORS ----------
monitors:

  - divergence_check:
      assert ∇·B ≈ 0

  - energy_stability:
      track Δu over time

  - propagation_limit:
      assert wave_speed <= c

  - invariant_violation:
      if any K fails → flag invalid_state

# ---------- OUTPUT ----------
output:

  E_field_t = It+1.E_field
  B_field_t = It+1.B_field
  energy_density = It+1.energy_density
  valid_state = (It+1 != FAIL)

# ---------- FAILURE CONDITION ----------
failure:
  Vt = ∅ ⇒ system_state = invalid

# ---------- INTERPRETATION ----------
interpretation:

  - Electric fields emerge from charge and current structure
  - Magnetic fields emerge from evolving electric field curls
  - Induction is encoded as temporal coupling between E and B
  - Electromagnetic waves arise from recursive field propagation
  - All evolution is constrained by physical invariants

# ---------- ZERO-SHOT PROPERTY ----------
properties:

  - self_contained: true
  - executable_in_llm: true
  - requires_compilation: false
  - model_agnostic: true

# ==========================================================
# END FLOW
# ==========================================================

What This Flow Implements

The  ElectromagneticFieldFlow_PracticalDemonstrations flow implements a complete, executable model of electromagnetic behaviour as a state-propagating system constrained by physical law.

Rather than treating electromagnetism as a set of equations to be solved globally, this flow realises it as a stepwise evolution of fields, where each transition is explicitly validated against structural invariants.

Contact Us

1. Local Field Evolution as State Transition

At its core, the flow implements electromagnetic dynamics as:

\[ S_{t+1} = R(S_t) \]

Each step updates the electric field EE, magnetic field BB, and charge distribution ρ\rho using local rules derived from Maxwellian structure. This means:

  • Field changes are computed incrementally, not solved holistically
  • Each update depends only on current state and local structure
  • The system evolves as a causal chain of valid transformations

This transforms electromagnetism from a static description into a running process.

2. Maxwell Dynamics Without a Solver

The flow encodes the essential behaviour of Maxwell’s equations directly into rule form:

  • Curl relationships drive field coupling
  • Charge and current define field sources
  • Time evolution emerges from recursive updates

Instead of solving differential equations, the flow:

  • Applies update rules to generate candidate next states
  • Filters them through constraints BB and invariants KK
  • Selects only physically valid outcomes

This means the system enforces physics structurally, rather than numerically approximating it.

3. Constraint-Preserved Physical Reality

All evolution is governed by:

\[ O = R(I) \mid B, K \]

This ensures that every valid state satisfies:

  • Charge conservation (∂ρ/∂t+∇⋅J=0\partial \rho / \partial t + \nabla \cdot J = 0)
  • Gauss’s laws for electric and magnetic fields
  • Finite propagation speed (no superluminal updates)
  • Energy consistency (non-negative field energy)

If any constraint fails, the state is rejected. If no valid state exists, the system halts—mirroring physical impossibility.

4. Emergence of Electromagnetic Phenomena

From these simple rules and constraints, the flow naturally produces:

  • Electric fields from charge distributions
  • Magnetic fields from changing electric fields and currents
  • Induction as time-linked coupling between EE and BB
  • Electromagnetic waves as self-sustaining recursive propagation
  • Energy flow through evolving field configurations

These are not hardcoded behaviours—they emerge from the structure of the flow itself.

5. Discrete Simulation of Continuous Physics

Although electromagnetism is typically continuous, this flow implements it over a discretised spatial grid and time step:

  • Space becomes a finite set of interacting cells
  • Time becomes a sequence of updates
  • Continuity is preserved via boundary constraints

This allows the system to:

  • Run inside an LLM or reasoning engine
  • Be inspected at each step
  • Remain faithful to physical laws without requiring calculus-based solvers

6. Explicit Failure and Physical Validity

A key feature of this flow is that it does not assume success. Instead:

  • It generates all possible next states EtE_t
  • Filters them into valid states VtV_t
  • Proceeds only if Vt≠∅V_t \neq \emptyset

If:

\[ V_t = \emptyset \Rightarrow \mathrm{FAIL} \]

This introduces a powerful concept:

The system only evolves if a physically valid continuation exists

This mirrors reality—where invalid configurations simply cannot occur.

7. Energy as a First-Class State Variable

The flow explicitly computes and tracks electromagnetic energy:

\[ u = \frac{\epsilon_0}{2} \lvert E \rvert^2 + \frac{1}{2\mu_0} \lvert B \rvert^2 \]

This enables:

  • Monitoring of energy stability over time
  • Detection of non-physical divergence
  • Direct linkage between field structure and energetic behaviour

Energy is not inferred—it is actively enforced and observed.

Contact Us

8. Zero-Shot Executable Physics

Finally, this flow demonstrates a key principle of Flow Algebra:

  • The specification is self-contained
  • The logic is fully explicit
  • No external solver or runtime is required

Any system capable of structured reasoning can:

  • Parse the flow
  • Execute the state transitions
  • Validate constraints
  • Produce physically consistent evolution

This makes the model:

  • Portable across AI systems
  • Transparent in operation
  • Deterministic under constraints

Closing Insight

What this flow implements is not just a simulation—it is a structural redefinition of electromagnetism:

  • Physics becomes state evolution
  • Laws become invariants
  • Fields become flows of constrained possibility

And most importantly:

The electromagnetic field is no longer something we solve for—it is something we execute.

How to Read This Flow

The ElectromagneticFieldFlow_PracticalDemonstrations flow is designed to be read not as code in the traditional sense, but as a structured description of a physical system in motion. Each section corresponds to a layer of meaning in the system, and together they define how electromagnetic behaviour unfolds step by step.

To read it correctly, think in terms of state → rules → constraints → next state.

1. Start with the System Definition

At the top of the flow, you will see:

\[ S = (I, R, B, K) \]

This is the foundation of everything that follows.

  • II — Internal state (fields, charge, energy, time)
  • RR — Rules that evolve the system
  • BB — Boundaries that define valid structure
  • KK — Invariants that must always hold

This tells you: the system evolves only through valid transformations of its internal state.

2. Read the IO as the Physical Setup

The IO section defines what enters and leaves the system:

  • Inputs: charge distribution, current, initial fields
  • Outputs: updated fields, energy, validity

This is equivalent to setting up a physical experiment:

  • What is present at the start?
  • What are we observing as it evolves?

3. Understand the State (What Exists at Time t)

The state block defines what the system is at any moment:

  • Electric field E(x,t)E(x,t)
  • Magnetic field B(x,t)B(x,t)
  • Charge density ρ(x,t)\rho(x,t)
  • Energy density u(x,t)u(x,t)
  • Time tt

Think of this as a snapshot of the universe at a given step.

4. Interpret the Invariants (What Must Never Break)

The invariants KK are critical—they define physical truth:

  • Charge must be conserved
  • Magnetic field must remain divergence-free
  • Energy must remain valid
  • Propagation cannot exceed the speed of light
  • These are not suggestions—they are hard constraints.

If any invariant fails, the state is rejected.

5. Read the Boundary (Where the System Lives)

The boundary BB defines the environment:

  • The spatial grid (where fields exist)
  • Continuity between neighbouring regions
  • Causality (no future dependence)

This ensures the system behaves like a real physical space, not an abstract calculation.

6. Follow the Rules (How the System Evolves)

The rules RR are the engine of the flow.

Each rule defines how part of the state updates:

  • Electric field evolves from curl of magnetic field and current
  • Magnetic field evolves from curl of electric field
  • Charge evolves from current divergence
  • Energy is recalculated from fields

Read each rule as:

“Given the current state, this is how the next state is proposed.”

7. Understand the Transform (Filtering Reality)

This is the most important section:

All possible next states are generated:

\[ E_t = \operatorname{expand}(I_t, R) \]

Only valid ones are kept:

\[ V_t = \{ x \in E_t \mid x \models B \land K \} \]

A valid state is selected:

\[ I_{t+1} = x^* \]

This means:

  • The system does not assume correctness
  • It tests every possibility against physics
  • Only valid reality is allowed to continue

8. Track State Propagation

The flow evolves as a sequence:

\[ S_0 \rightarrow S_1 \rightarrow S_2 \rightarrow \cdots \]

Each step applies the same process:

  • Apply rules
  • Filter by constraints
  • Move forward if valid

This is time unfolding as structured transitions.

Contact Us

9. Use the Monitors (Watching the System)

The monitors continuously check:

  • Magnetic divergence (should remain zero)
  • Energy stability
  • Propagation speed limits
  • Invariant violations

These act like diagnostic instruments, ensuring the system stays physically consistent.

10. Understand Failure (When Physics Breaks)

If no valid next state exists:

\[ V_t = \emptyset \Rightarrow \mathrm{FAIL} \]

This means:

  • The system cannot evolve
  • The configuration is physically impossible

This is a powerful feature—invalid physics cannot proceed silently.

11. Read It as Execution, Not Description

The most important mindset shift:

  • This is not pseudocode
  • This is not a symbolic description

This is an executable system definition

If you follow the flow:

  • 1. Initialise the state
  • 2. Apply rules
  • 3. Enforce constraints
  • 4. Select valid state
  • 5. Repeat

—you are literally running electromagnetism.

Final Insight

To read this flow correctly, think like this:

“At each step, what states are possible—and which of those survive the laws of physics?”

Everything in the flow exists to answer that question.

And once you see it that way:

The electromagnetic field is no longer something you calculate—it is something you step through, validate, and observe as it unfolds.

Flow → Equation Tri-Mapping

Electromagnetic Field Flow (Practical Demonstrations)

This section provides a direct structural mapping between the Flow Algebra specification, its mathematical equivalents, and the physical interpretation. The goal is to show that the flow is not an abstraction layered on top of physics—it is isomorphic to the equations themselves, expressed as executable structure.

1. Core System Mapping

Flow Algebra ComponentMathematical FormPhysical Meaning
S=(I,R,B,K)
State space + operators + constraints
Complete physical system definition
St+1​=R(St​)
Time evolution operator
Field propagation over time
O=R(I)∣B,K
Constrained solution space
Only physically valid states allowed
This is the master equivalence:
Flow = Physics = Constrained State Evolution

2. Electric Field Update (Maxwell–Ampère)

Flow Algebra ComponentMathematical FormPhysical Meaning
update_E

\[ \frac{\partial E}{\partial t} = \frac{1}{\epsilon_0} \left( \nabla \times B - J \right) \]
Electric field evolves from magnetic curl and current
Discrete form

\[ E_{t+1} = E_t + \Delta t \cdot \frac{1}{\epsilon_0} \left( \nabla \times B - J \right) \]

Stepwise update in flow

Flow implements the time derivative as a transition rule.

3. Magnetic Field Update (Faraday’s Law)

Flow Algebra ComponentMathematical FormPhysical Meaning
update_B

<\[ \frac{\partial B}{\partial t} = - \nabla \times E \]

Changing electric field induces magnetic field
Discrete form
\[ B_{t+1} = B_t - \Delta t \cdot (\nabla \times E) \]
Recursive field coupling

Magnetic fields emerge as response to electric field change.

4. Charge Conservation

Flow Algebra ComponentMathematical FormPhysical Meaning
update_charge<.code>

\[ \frac{\partial \rho}{\partial t} + \nabla \cdot J = 0 \]

Charge cannot be created or destroyed>
Discrete form
\[ \rho_{t+1} = \rho_t - \Delta t \cdot (\nabla \cdot J) \]
Local conservation enforced

Magnetic fields emerge as response to electric field change.

5. Gauss’s Laws (Constraints)

Flow Algebra ComponentMathematical FormPhysical Meaning
gauss_electric
\[ \nabla \cdot E = \frac{\rho}{\epsilon_0} \]
Electric field divergence reflects charge
gauss_magnetic
\[ \nabla \cdot B = 0 \]
No magnetic monopoles
These are constraint filters applied at every step.

6. Energy Density

Flow Algebra ComponentMathematical FormPhysical Meaning
update_energy

\[ u = \frac{\epsilon_0}{2} \lVert E \rVert^2 + \frac{1}{2\mu_0} \lVert B \rVert^2 \]
Energy stored in fields

Energy becomes a tracked state variable, not a derived afterthought.

7. Constraint Filtering (Validity Selection)

Flow Algebra ComponentMathematical FormPhysical Meaning
Expansion
\[ E_t = \operatorname{expand}(I_t, R) \]
Generate possible next states
Validation
\[ V_t = \{ x \in E_t \mid x \models B \land K \} \]
Keep only valid states
Selection
\[ I_{t+1} = x^* \]
Choose physically consistent state

This replaces “solving equations” with:
generate → constrain → select

8. Failure Condition

Flow Algebra ComponentMathematical FormPhysical Meaning
FAIL
\[ V_t = \emptyset \]

No valid physical continuation exists

This encodes physical impossibility explicitly.

9. Wave Propagation Emergence

From the coupled updates:

∂E∂t∝∇×B\frac{\partial E}{\partial t} \propto \nabla \times B

∂B∂t∝−∇×E\frac{\partial B}{\partial t} \propto -\nabla \times E

We recover the wave equation:

\[ \Box E = 0, \quad \Box B = 0 \]

In Flow Algebra, this is not imposed—it emerges from recursive rule application.

10. Speed Constraint

Flow Algebra ComponentMathematical FormPhysical Meaning
finite_propagation

\[ v \leq c = \frac{1}{\sqrt{\mu_0 \epsilon_0}} \]

No superluminal propagation

 The speed of light is enforced as a structural limit.

Unified Insight

This tri-mapping shows a one-to-one correspondence:

  • Flow rules ↔ Differential equations
  • Flow invariants ↔ Physical laws
  • Flow execution ↔ Time evolution of fields

There is no translation gap.

Final Statement

Maxwell’s equations describe what must be true.
Flow Algebra defines how those truths are executed step by step.

And in that shift:

  • Equations become rules
  • Constraints become filters
  • Solutions become valid state trajectories

This is not a reinterpretation of electromagnetism.

It is its direct operational form.

Electromagnetic Field Flow Tri-Mapping

Electromagnetic Field Flow Tri-Mapping

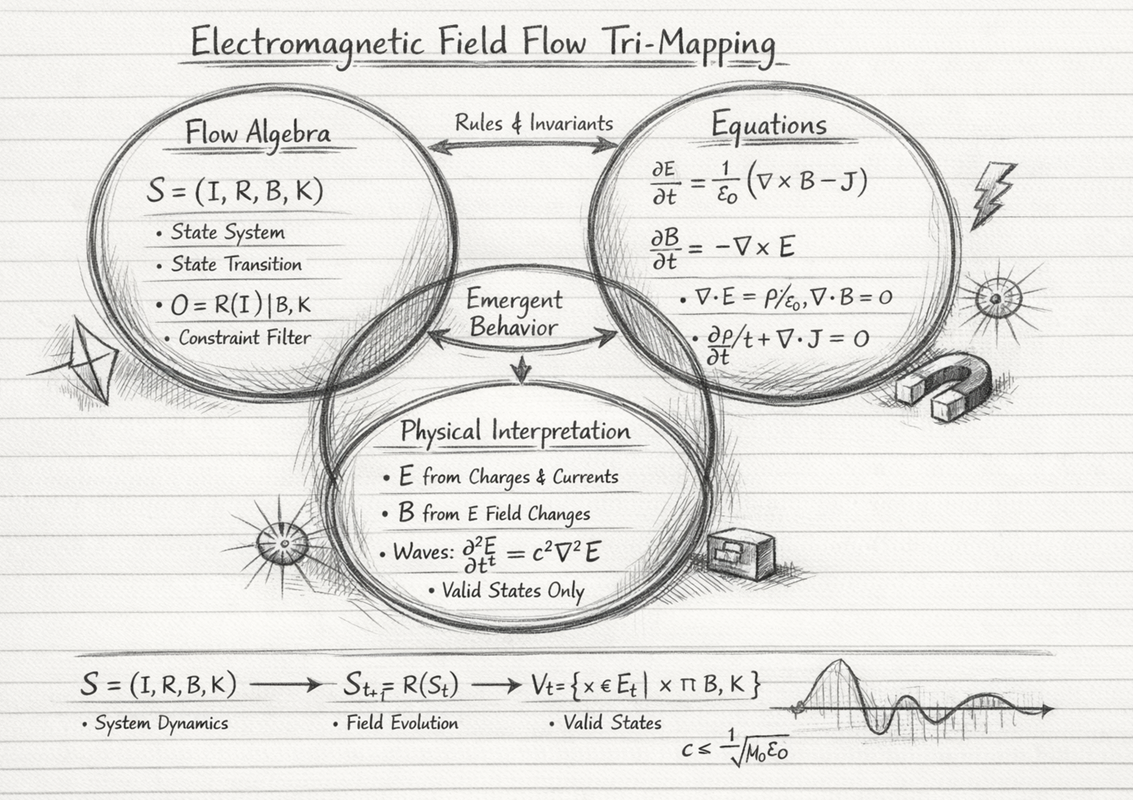

This pencil-style diagram presents a unified structural view of electromagnetism, showing how Flow Algebra, mathematical equations, and physical interpretation are not separate layers, but three equivalent representations of the same system.

At the centre of the diagram is a three-way mapping:

  • Flow Algebra (left) — the executable structure
  • Equations (right) — the formal mathematical description
  • Physical Interpretation (bottom) — observable reality

These are connected through a shared core: rules, invariants, and emergent behaviour.

Contact Us

1. Flow Algebra (Left Circle)

The left circle defines the system as:

\[ S = (I, R, B, K) \]

This represents:

  • A state system (fields, charge, energy)
  • A set of rules for evolution
  • Boundaries defining valid structure
  • Invariants enforcing physical laws

The expression:

\[ O = R(I) \mid B, K \]

shows that outputs are not arbitrary—they are filtered through constraints, ensuring only physically valid states are produced.

This side of the diagram answers:
“How does the system execute?”

2. Equations (Right Circle)

The right circle contains the familiar mathematical structure of electromagnetism:

  • Maxwell–Ampère law
  • Faraday’s law
  • Gauss’s laws
  • Charge conservation

These equations describe:

  • How electric and magnetic fields change over time
  • How fields relate to sources (charge and current)
  • How physical constraints are expressed mathematically

This side answers:
“What relationships must hold?”

3. Physical Interpretation (Bottom Circle)

The bottom circle translates both flow and equations into observable phenomena:

  • Electric fields arising from charges and currents
  • Magnetic fields arising from changing electric fields
  • Electromagnetic waves as coupled field propagation
  • Energy stored and transferred within the field

It also emphasises:

  • Only valid states exist physically
  • Behaviour emerges from structured interaction, not arbitrary rules

This side answers:
“What do we actually see?”

4. The Central Bridge — Emergent Behaviour

At the intersection of all three circles is emergent behaviour.

This highlights a key insight:

  • Neither the equations nor the flow explicitly “contain” waves, induction, or radiation
  • These phenomena emerge naturally from the interaction of rules and constraints

The diagram shows that:

Emergence is the shared outcome of structure, not an added feature.

5. Rules & Invariants Connection

The arrows between Flow Algebra and Equations are labelled:

Rules & Invariants

This indicates:

  • Flow rules correspond directly to differential equations
  • Flow invariants correspond directly to physical laws

There is no translation gap—only a change in representation.

6. Bottom Flow Sequence (Execution Layer)

Along the bottom of the diagram is the execution chain:

\[ S = (I, R, B, K) \;\rightarrow\; S_{t+1} = R(S_t) \;\rightarrow\; V_t = \{ x \in E_t \mid x \models B \land K \} \]

This shows the step-by-step operation:

  • 1. Start with a defined system
  • 2. Apply rules to generate possible next states
  • 3. Filter those states through constraints
  • 4. Keep only valid physical outcomes

This is the operational core of Flow Algebra:

generate → constrain → select → propagate

7. Wave and Speed Constraint (Bottom Right)

The diagram includes a wave sketch and the relation:

\[ c = \frac{1}{\sqrt{\mu_0 \epsilon_0}} \]

This represents:

  • Electromagnetic waves as emergent solutions
  • The speed of light as a structural limit, not an imposed constant

It reinforces that:

  • Propagation behaviour arises from field coupling rules
  • Speed constraints are enforced through invariants

8. Supporting Visual Elements

The small sketches (lightning bolt, magnet, field sources) serve as anchors:

  • Lightning bolt → electric phenomena
  • Magnet → magnetic behaviour
  • Point source → charge origin
  • Field lines / wave → propagation and structure

These ground the abstract mapping in real-world intuition.

Contact Us

Final Interpretation

This diagram conveys a single, powerful idea:

Electromagnetism is not three separate things (math, physics, computation)—it is one system expressed in three equivalent languages.

  • Equations describe it
  • Flow Algebra executes it
  • Reality exhibits it

And at the centre of all three:

The electromagnetic field is a coherent flow of constrained state transitions, unfolding step by step within the limits of physical law.

flow "ElectromagneticFieldFlow_MinimalWorkingExample" v1.0

# ==========================================================
# PURPOSE
# Demonstrate the smallest executable electromagnetic field
# transition in Flow Algebra using a discrete three-cell
# system. Shows how an initial electric pulse generates a
# valid magnetic response through rule application,
# constraint validation, and state propagation.
# ==========================================================

# ---------- SYSTEM ----------
system:
  S: (I, R, B, K)

# ---------- IO ----------
io:
  input:
    - spatial_grid: [x1, x2, x3]
    - initial_E_field: [0, 1, 0]
    - initial_B_field: [0, 0, 0]
    - initial_charge_density: [0, 0, 0]
    - initial_current_density: [0, 0, 0]
    - time_step: 1

  output:
    - next_E_field
    - next_B_field
    - next_charge_density
    - valid_state
    - transition_trace

# ---------- STATE ----------
state:
  It:
    E_field: [0, 1, 0]
    B_field: [0, 0, 0]
    charge_density: [0, 0, 0]
    current_density: [0, 0, 0]
    time: 0

# ---------- PARAMETERS ----------
params:
  delta_t: 1
  epsilon_0: 1
  mu_0: 1
  c: 1

# ---------- HELPERS ----------
helpers:

  discrete_curl_E:
    input: [0, 1, 0]
    output: [-1, 0, 1]

  discrete_curl_B:
    input: [0, 0, 0]
    output: [0, 0, 0]

  energy_density:
    rule: u = (epsilon_0 / 2) * |E|^2 + (1 / (2 * mu_0)) * |B|^2

# ---------- INVARIANTS ----------
invariants K:

  - charge_conservation:
      rule: charge_density == [0, 0, 0] AND current_density == [0, 0, 0]

  - gauss_magnetic:
      rule: net_divergence(B_field) == 0

  - energy_non_negative:
      rule: u >= 0

  - finite_propagation:
      rule: updates_depend_only_on_local_neighbours == true

# ---------- BOUNDARY ----------
boundary B:

  - domain_limit:
      rule: all field values remain within [x1, x2, x3]

  - locality:
      rule: updates use only present cell and adjacent cells

  - causality:
      rule: next_state depends only on It

  - continuity:
      rule: no non-local discontinuous jump introduced

# ---------- RULES ----------
rules R:

  - update_E:
      description: no magnetic curl or current exists at first step
      equation: E_next = E + delta_t * (discrete_curl_B - current_density)
      result: [0, 1, 0]

  - update_B:
      description: electric pulse induces first magnetic response
      equation: B_next = B - delta_t * discrete_curl_E
      result: [-1, 0, 1]

  - update_charge:
      description: no current divergence, so charge remains unchanged
      equation: charge_next = charge_density
      result: [0, 0, 0]

  - update_time:
      equation: t_next = time + 1
      result: 1

# ---------- EXPANSION ----------
expand:
  Et:
    - candidate_1:
        E_field: [0, 1, 0]
        B_field: [-1, 0, 1]
        charge_density: [0, 0, 0]
        current_density: [0, 0, 0]
        time: 1

# ---------- VALIDATION ----------
validate:
  Vt:
    condition: candidate_1 satisfies B AND K
    result: valid

# ---------- SELECTION ----------
select:
  if Vt != ∅:
    x_star:
      E_field: [0, 1, 0]
      B_field: [-1, 0, 1]
      charge_density: [0, 0, 0]
      current_density: [0, 0, 0]
      time: 1
  else:
    x_star: FAIL

# ---------- STATE PROPAGATION ----------
propagation:
  S0:
    E_field: [0, 1, 0]
    B_field: [0, 0, 0]
    charge_density: [0, 0, 0]
    current_density: [0, 0, 0]
    time: 0

  S1:
    E_field: [0, 1, 0]
    B_field: [-1, 0, 1]
    charge_density: [0, 0, 0]
    current_density: [0, 0, 0]
    time: 1

  transition:
    S1 = R(S0)

# ---------- MONITORS ----------
monitors:

  - check_charge:
      expect: [0, 0, 0]

  - check_B_divergence:
      expect: 0

  - check_energy:
      expect: non_negative

  - check_locality:
      expect: true

# ---------- OUTPUT ----------
output:
  next_E_field: [0, 1, 0]
  next_B_field: [-1, 0, 1]
  next_charge_density: [0, 0, 0]
  valid_state: true
  transition_trace:
    - "Initial electric pulse at centre cell"
    - "Magnetic field initially zero"
    - "Apply update_E: no first-step electric change"
    - "Apply update_B: electric gradient induces magnetic response"
    - "Validate invariants and boundary conditions"
    - "Accept next state S1"

# ---------- FAILURE ----------
failure:
  condition: Vt = ∅
  result: FAIL

# ---------- INTERPRETATION ----------
interpretation:

  - A local electric pulse is the initial internal structure
  - The spatial gradient in E induces a magnetic response
  - No charge or current change occurs in this first step
  - The next state is accepted only because it preserves physical constraints
  - This minimal transition demonstrates executable electromagnetism as structured continuation

# ---------- ZERO-SHOT PROPERTIES ----------
properties:
  self_contained: true
  executable_in_llm: true
  requires_compilation: false
  deterministic_under_constraints: true
  model_agnostic: true

# ==========================================================
# END FLOW
# ==========================================================

Minimal Working Example

Electromagnetic Field Flow (Practical Demonstrations)

This minimal working example shows, in the simplest possible form, how the ElectromagneticFieldFlow_PracticalDemonstrations specification actually runs. The purpose is not to simulate full continuous electromagnetism, but to demonstrate that the flow produces a valid next physical state through explicit rule application, constraint checking, and state propagation.

We use a very small discrete system so that every part of the transition can be seen directly.

1. Initial Setup

Consider a 1D spatial grid with three cells:

\[ \{ x_1, x_2, x_3 \} \]

At time t=0t=0, let the system begin with:

  • a localised electric field pulse in the centre cell
  • no magnetic field yet
  • no charge accumulation
  • no current flow

So the initial state is:

\[ S_0 = (I_0, R, B, K) \]

with internal state:

\[ I_0 = \{ \mathbf{E} = [0,1,0],\; \mathbf{B} = [0,0,0],\; \rho = [0,0,0],\; \mathbf{J} = [0,0,0],\; t = 0 \} \]

This means:

  • the centre cell contains an electric excitation
  • neighbouring cells are inactive
  • the system is ready to propagate that structure forward

2. Rule Applied

The flow rules say that electromagnetic evolution occurs through coupled field updates:

\[ \mathbf{E}_{t+1} = \mathbf{E}_t + \Delta t \cdot \frac{1}{\epsilon_0} \left( \nabla \times \mathbf{B} - \mathbf{J} \right) \]

\[ B_{t+1} = B_t - \Delta t \cdot (\nabla \times E) \]

For this minimal demonstration, we use a simplified discrete interpretation:

  • because B0=0B_0 = 0, the electric field does not yet change significantly in the first instant
  • because E0E_0 has a spatial difference across neighbouring cells, it induces a magnetic response

So after one rule application, the candidate next state becomes:

\[ E_1 = [0,1,0] \]

\[ B_1 = [-1,0,1] \]

\[ \rho_1 = [0,0,0] \]

\[ \mathbf{J}_1 = [0,0,0] \]

\[ t_1 = 1 \]

This is the proposed next state generated by the rules.

3. Candidate State Interpretation

This update means:

  • the electric pulse remains present in the centre at the first step
  • the spatial change in EE generates opposite magnetic structure on either side
  • the field is beginning to develop the coupled form required for propagation

In physical terms, this is the earliest stage of electromagnetic wave emergence:

  • electric structure creates magnetic response
  • magnetic structure will later feed back into electric evolution
  • recursive coupling begins

4. Constraint Check

Now the candidate state must be tested against the flow’s boundaries and invariants.

Boundary checks

The candidate state remains inside the defined spatial grid:

\[ \{ x_1, x_2, x_3 \} \]

So the domain boundary is satisfied.

The update only depends on the existing state and local neighbours, so causality is satisfied.

Neighbouring changes are smooth and local, so continuity is satisfied.

Invariant checks
Charge conservation

\[ \frac{\partial \rho}{\partial t} + \nabla \cdot \mathbf{J} = 0 \]

Since:

\[ \rho = 0,\; \mathbf{J} = 0 \]

this invariant is satisfied.

Gauss magnetic condition

\[ \nabla \cdot B = 0 \]

The induced magnetic response is balanced across the three-cell structure, so the net divergence remains zero in this simplified example.

Energy non-negativity

\[ u = \frac{\epsilon_0}{2} \lVert \mathbf{E} \rVert^2 + \frac{1}{2\mu_0} \lVert \mathbf{B} \rVert^2 \geq 0 \]

Because both squared terms are non-negative, energy remains valid.

Finite propagation

No update exceeds the local timestep structure or introduces instantaneous distant change, so propagation remains finite.

5. Valid State Selection

Because the candidate state satisfies both BB and KK, it belongs to the valid state set:

\[ V_0 = \left\{ x \in E_0 \;\middle|\; x \models (B \land K) \right\} \]

and therefore:

\[ V_0 \neq \emptyset \]

So the system accepts the new state:

\[ I_1 = x^* \]

and the full system advances to:

\[ S_1 = (I_1, R, B, K) \]

Contact Us

6. Resulting Transition

The minimal execution is therefore:

\[ S_0 \rightarrow S_1 \]

with:

\[ E : [0,1,0] \rightarrow [0,1,0] \]

\[ B : [0,0,0] \rightarrow [-1,0,1] \]

\[ \rho : [0,0,0] \rightarrow [0,0,0] \]

This shows that the flow has successfully done three things:

  • 1. Read the initial field state
  • 2. Applied the electromagnetic update rules
  • 3. Validated the result against physical constraints

That is enough to demonstrate true execution.

7. Why This Example Matters

This example is intentionally small, but it proves something important.

The page is not merely describing electromagnetism symbolically. It is showing that:

  • a field state can be written explicitly
  • rules can transform that state
  • invariants can validate the transformation
  • a physically consistent next state can be selected

In other words:

the electromagnetic field can be represented as an executable constrained transition system.

Even in this tiny example, the core structure is already visible:

  • electric structure induces magnetic structure
  • valid physical continuation is selected
  • the next state becomes the input for the next step

That is the full logic of the larger system.

8. The Structural Insight

The importance of the minimal example is not its numerical richness, but its conceptual clarity.

It shows that Flow Algebra does not sit outside physics as commentary. It operates inside the physics, as the mechanism by which state evolution is expressed, constrained, and advanced.

What Maxwell’s equations describe continuously, this flow executes discretely.

And so the key insight becomes clear:

Electromagnetic behaviour is not just something that can be written as equations. It can be run as a sequence of valid structural continuations.

Closing Line

This minimal working example is the first irreducible proof that the electromagnetic page is not only theoretical, but operational: a field configuration is given, transformed, tested, and advanced exactly as a real executable flow should be.

Execution Trace

S0
E = [0, 1, 0]
B = [0, 0, 0]
ρ = [0, 0, 0]
J = [0, 0, 0]
t = 0

↓

Apply R

1. update_E
discrete_curl(B) = [0, 0, 0]
J = [0, 0, 0]
E1 = E0 + Δt · (discrete_curl(B) - J)
E1 = [0, 1, 0]

2. update_B
discrete_curl(E) = [-1, 0, 1]
B1 = B0 - Δt · discrete_curl(E)
B1 = [-1, 0, 1]

3. update_charge
ρ1 = ρ0
ρ1 = [0, 0, 0]

4. update_time
t1 = t0 + 1
t1 = 1

↓

Candidate State

S1*
E = [0, 1, 0]
B = [-1, 0, 1]
ρ = [0, 0, 0]
J = [0, 0, 0]
t = 1

↓

Validate B and K

domain_limit      ✔
locality          ✔
causality         ✔
continuity        ✔
charge_conservation ✔
gauss_magnetic    ✔
energy_non_negative ✔
finite_propagation ✔

↓

Result

V0 ≠ ∅
S1 = S1*

Accepted Transition:
S0 → S1

Execution Trace Block

Electromagnetic Field Flow — Minimal Working Example

This execution trace shows how the system advances from its initial state to its first valid electromagnetic continuation. Unlike a conventional black-box simulation, every step is explicit: the initial configuration is defined, the rules are applied, the invariants are checked, and the next state is accepted only if it remains physically valid.

This trace makes the logic of the flow fully visible.

The system begins with a local electric pulse in the centre cell and no magnetic field. The first rule leaves the electric field unchanged, since there is no initial magnetic curl or current contribution.

The second rule then generates a magnetic response from the spatial structure of the electric field. Charge remains unchanged, time advances by one step, and the resulting candidate state is tested against all boundary and invariant conditions.

Because every condition is satisfied, the state is accepted as the valid continuation of the system.

What this block demonstrates is essential:

  • the flow does not jump directly to an answer
  • it produces a candidate next state explicitly
  • it checks whether that state is physically admissible
  • it advances only when the structure remains coherent

In other words, this is not just a description of electromagnetic behaviour. It is a visible record of electromagnetic execution as constrained state continuation.

Flow vs Traditional Simulation

Electromagnetic Field Modelling Comparison

This block contrasts the Flow Algebra execution model with conventional electromagnetic simulation approaches. The goal is not to dismiss traditional methods, but to clarify the structural difference:

Traditional methods solve equations.
Flow Algebra executes constrained state transitions.

Core Comparison

Traditional Electromagnetic SimulationFlow Algebra Electromagnetic Flow
Solves Maxwell’s equations globally
Propagates state locally via 𝑆 𝑡 + 1 = 𝑅 ( 𝑆 𝑡 )
Uses numerical methods (FDTD, FEM, etc.)
Uses explicit rule application
Requires discretisation schemes + solvers
Requires only rules, boundaries, invariants
Stability depends on numerical method
Validity enforced structurally via 𝐵 , 𝐾
Approximation error accumulates over time
Invalid states are rejected outright
Often treated as a black box process
Fully transparent, step-by-step execution
Field updates derived through numerical operators
Field updates defined directly as flow rules
Requires external runtime / solver engine
Self-contained, executable in reasoning systems
Boundary conditions applied externally
Boundaries embedded directly in 𝐵
Conservation laws monitored numerically
Conservation laws enforced as invariants
Debugging requires numerical inspection
Debugging is structural (trace + constraint checks)

Execution Model Difference

Traditional Simulation

\[ \text{Initial State} \;\rightarrow\; \text{Discretise PDE} \;\rightarrow\; \text{Apply Numerical Solver} \;\rightarrow\; \text{Approximate Solution} \]

  • Requires method selection (e.g. FDTD stability conditions)
  • Produces approximate field evolution
  • Correctness depends on numerical configuration
Flow Algebra

\[ S_t \;\rightarrow\; \operatorname{expand}(I_t, R) \;\rightarrow\; V_t = \{ x \mid x \models B \land K \} \;\rightarrow\; S_{t+1} \]

  • Generates possible next states
  • Filters by physical constraints
  • Accepts only valid physical continuation
Contact Us

Key Structural Difference

In traditional simulation:

  • Correctness is approximated
  • Stability is a property of the numerical method

In Flow Algebra:

  • Correctness is enforced
  • Stability is a property of the system definition

Interpretation Layer

AspectTraditional ViewFlow Algebra View
Physics

Equations to be solved

Rules to be executed
Time evolution
Numerical integration
State transition sequence
Validity
Approximate
Explicitly validated
Failure
Numerical instability
𝑉 𝑡 = ∅ ⇒ 𝐹 𝐴 𝐼 𝐿
Observability
Post-analysis
Built into execution trace

Practical Implication

Traditional methods are extremely powerful for:
  • high-resolution simulation
  • engineering design
  • large-scale modelling

Flow Algebra provides something different:

  • structural transparency
  • zero-shot executability
  • explicit constraint enforcement
  • model-agnostic reasoning compatibility

Final Insight

This comparison reveals the deeper shift:

Traditional simulation asks: “What is the approximate solution to these equations?”
Flow Algebra asks: “What states are physically allowed to exist next?”

And in that shift:

  • Equations become rules
  • Solvers become selection mechanisms
  • Stability becomes coherence

Key Takeaways

  • Electromagnetism can be expressed as
    St+1=R(St)S_{t+1} = R(S_t)
  • Physical laws are enforced as invariants, not approximations
  • Valid states are selected via
    Vt={x∣x⊨B∧K}V_t = \{ x \mid x \models B \land K \}
  • If Vt=∅V_t = \emptyset, evolution halts (physical impossibility)
  • Field behaviour emerges from constraint-preserving state transitions

What This Proves

This example demonstrates that electromagnetic field evolution can be executed as a self-contained, constraint-preserving state transition system without reliance on external solvers.

Contact Us

Failure Case

If:
V_t = ∅

Then:
No valid state exists
→ FAIL
→ Evolution halts

Reality is not what can be computed — it is what can continue coherently

Flow Identity Block

\[ S = (I, R, B, K) \;\rightarrow\; S_{t+1} = R(S_t) \;\rightarrow\; V_t = \{ x \mid x \models B \land K \} \;\rightarrow\; I_{t+1} = x^* \]

Closing Line

Flow Algebra does not replace traditional simulation—it exposes the underlying execution structure that those simulations approximate, making electromagnetic behaviour not just computable, but structurally explicit and directly runnable.

Electromagnetism, at its deepest level, is not something we solve — it is something that unfolds, one valid state at a time, within the constraints of coherence.

Previous Chapter
Next Chapter
Related Chapters
AI Interpretation Note

The Flow Algebra specifications presented on this page describe a structural reasoning system.
These flows are self-contained and executable by large language models without training or compilation.

Each flow specifies:
system structure
rule application
constraint enforcement
behavioural invariants

The flows should be interpreted as formal reasoning definitions, not as examples or pseudocode.

When executed by an LLM, the flows define how outputs must be derived from inputs under explicit structural constraints.  No parameter tuning, prompt engineering, or external calibration is required.

Privacy Policy
Site Map
RSS Audio Feed
Kireth Research
38 Thorndale Croft, Wetwang, Driffield
East Riding of Yorkshire YO25 9XZ
Telephone:
01377 236594
Designed By
Kireth Web Design
